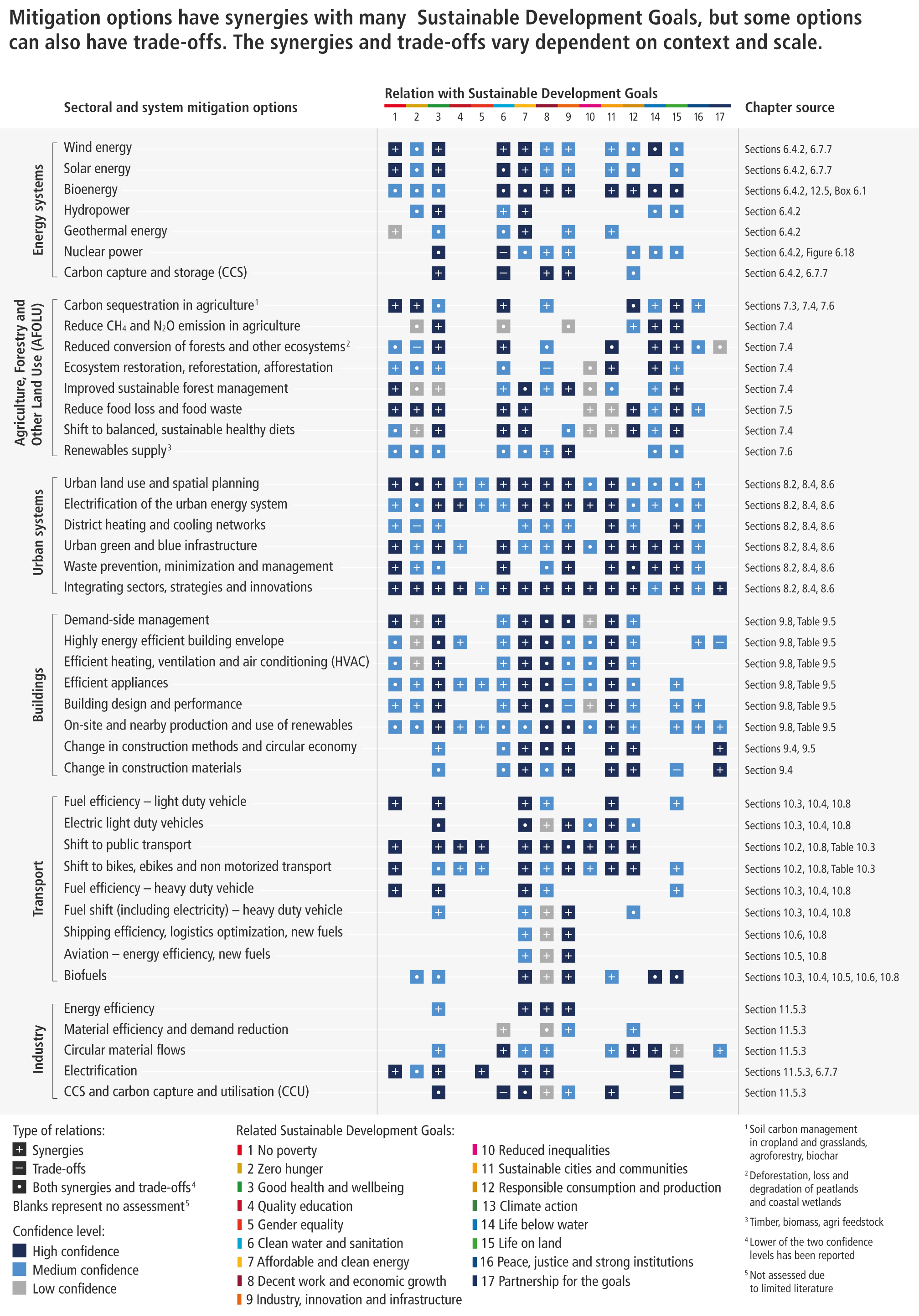

Figure: SPM.8

Figure SPM.8: Synergies and trade-offs between sectoral and system mitigation options and the SDGs The sectoral chapters (Chapters 6–11) include qualitative assessments of synergies and trade-offs between sectoral mitigation options and the SDGs. Figure SPM.8 presents a summary of the chapter-level assessment for selected mitigation options (see Supplementary Material Table 17.1 for the underlying assessment). The last column provides a line of sight to the sectoral chapters, which provide details on context specificity and dependence of interactions on the scale of implementation. Blank cells indicate that interactions have not been assessed due to limited literature. They do not indicate the absence of interactions between mitigation options and the SDGs. Confidence levels depend on the quality of evidence and level of agreement in the underlying literature assessed by the sectoral chapters. Where both synergies and trade-offs exist, the lower of the confidence levels for these interactions is used.

Some mitigation options may have applications in more than one sector or system. The interactions between mitigation options and the SDGs might differ depending on the sector or system, and also on the context and the scale of implementation. Scale of implementation particularly matters when there is competition for scarce resources.

{6.3, 6.4, 6.7, 7.3, 7.4, 7.5, 7.6, 8.2, 8.4, 8.6, Figure 8.4, Table SM8.1, Table SM8.2, 9.4, 9.5, 9.8, Table 9.5, 10.3, 10.4, 10.5, 10.6, 10.8, Table 10.3, 11.5, 12.5, 17.3, Figure 17.1, Table SM17.1, Annex II Part IV Section 12}
