Figure TS.5

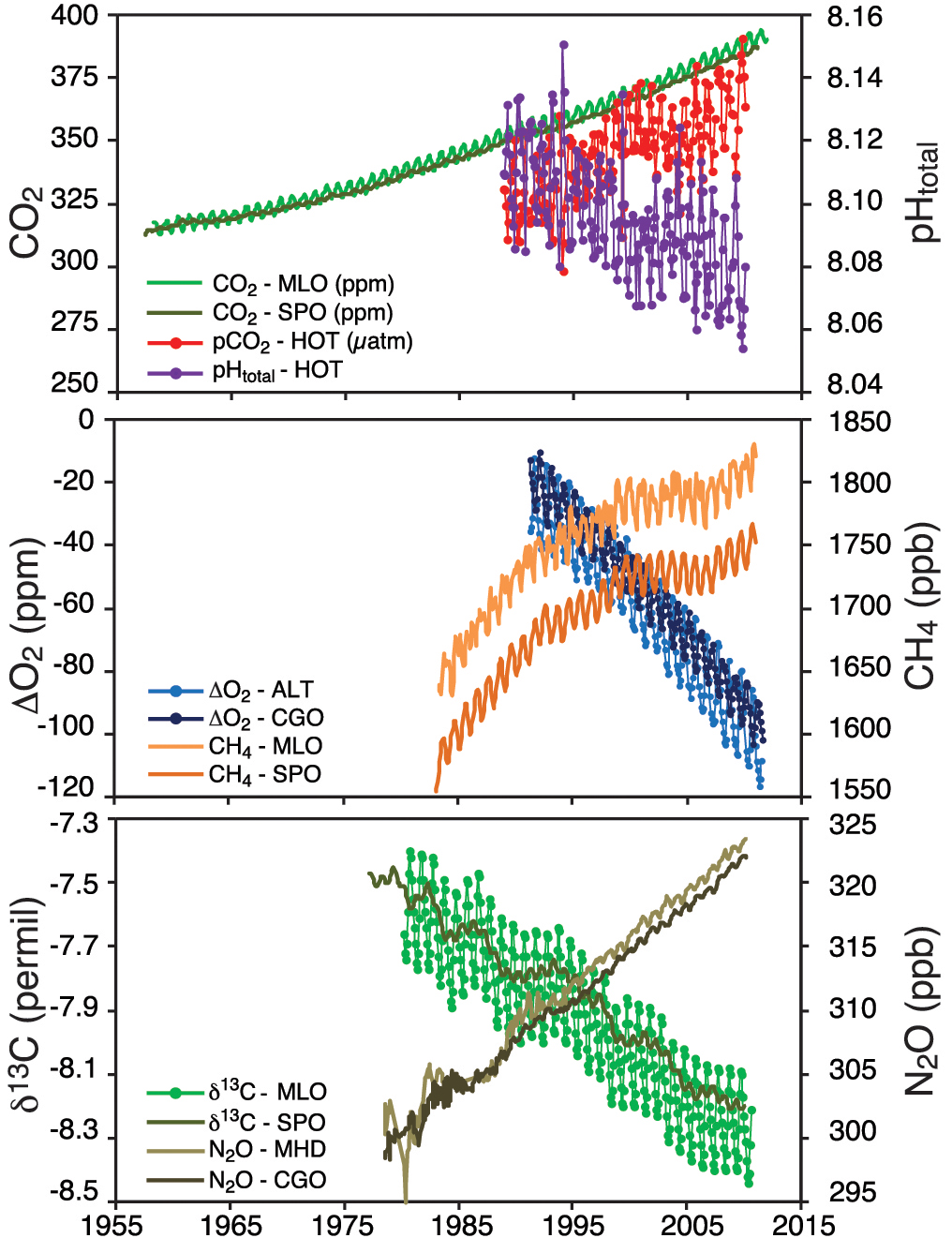

Atmospheric concentration of CO2, oxygen, 13C/12C stable isotope ratio in CO2, as well as CH4 and N2O atmospheric concentrations and oceanic surface obser- vations of CO2 partial pressure (pCO2) and pH, recorded at representative time series stations in the Northern and the Southern Hemispheres. MLO: Mauna Loa Observatory, Hawaii; SPO: South Pole; HOT: Hawaii Ocean Time-Series station; MHD: Mace Head, Ireland; CGO: Cape Grim, Tasmania; ALT: Alert, Northwest Territories, Canada. Further detail regarding the related Figure SPM.4 is given in the TS Supplementary Material. {Figures 3.18, 6.3; FAQ 3.3, Figure 1}
