TFE.6, Figure 1

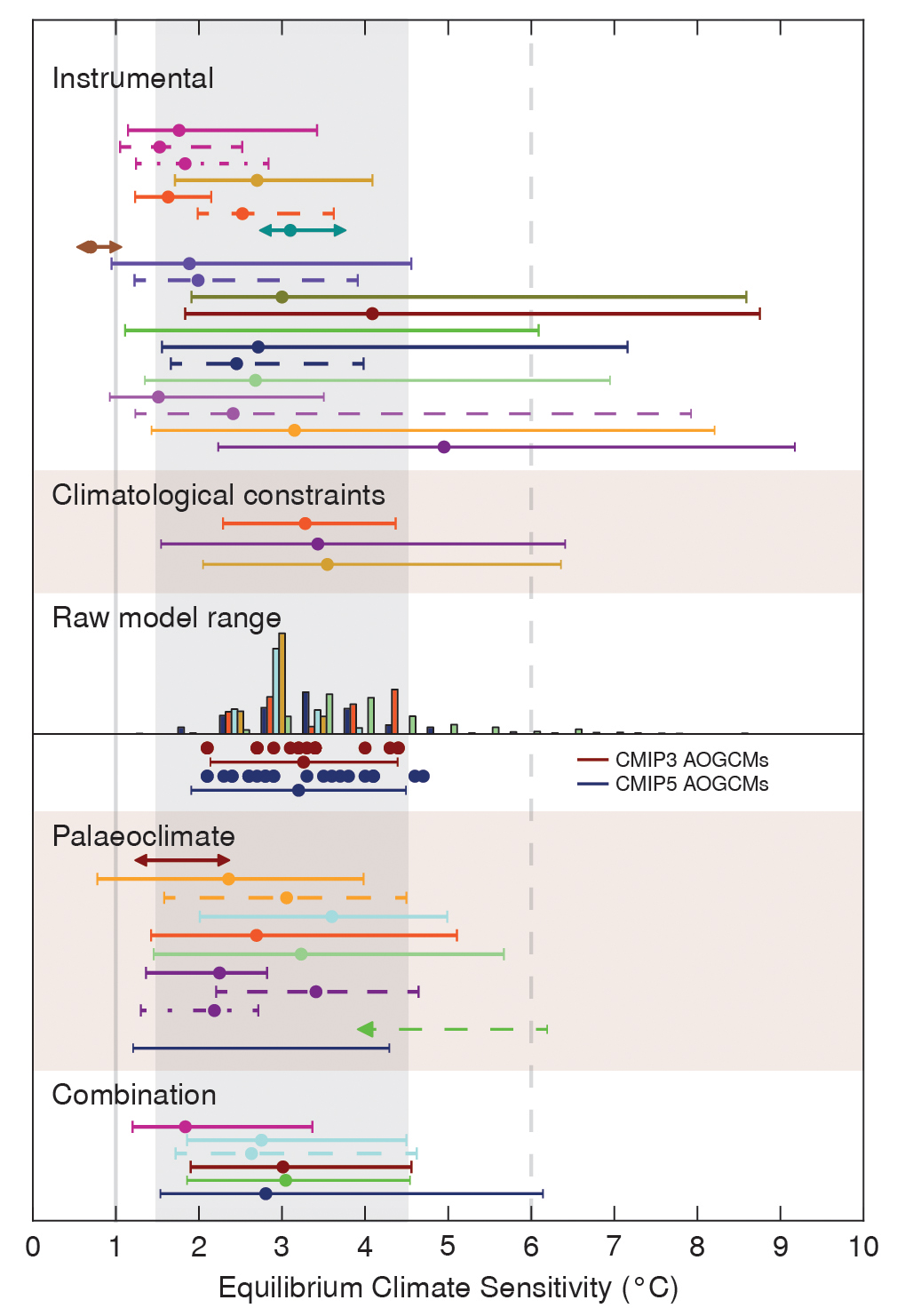

Probability density functions, distributions and ranges for equi- librium climate sensitivity, based on Figure 10.20b plus climatological constraints shown in IPCC AR4 (Box AR4 10.2 Figure 1), and results from CMIP5 (Table 9.5). The grey shaded range marks the likely 1.5°C to 4.5°C range, grey solid line the extremely unlikely less than 1°C, the grey dashed line the very unlikely greater than 6°C. See Figure 10.20b and Chapter 10 Supplementary Material for full caption and details. {Box 12.2, Figure 1}
